FBI IAFIS IQS Appendix F Certification
|
|
The certification provides
assurance to users that certified products meet or exceed FBI
interoperability standards and will work with the Integrated Automated
Fingerprint Information System (IAFIS). It ensures that the images used
are high quality and support all phases of identification for
fingerprint experts and the IAFIS. Appendix F has stringent image
quality conditions, focusing on the human fingerprint comparison and
facilitating large scale machine many-to-many matching operation.
|
|
|
Advanced Rolled Image Construction Technology (ARIC)
|
|

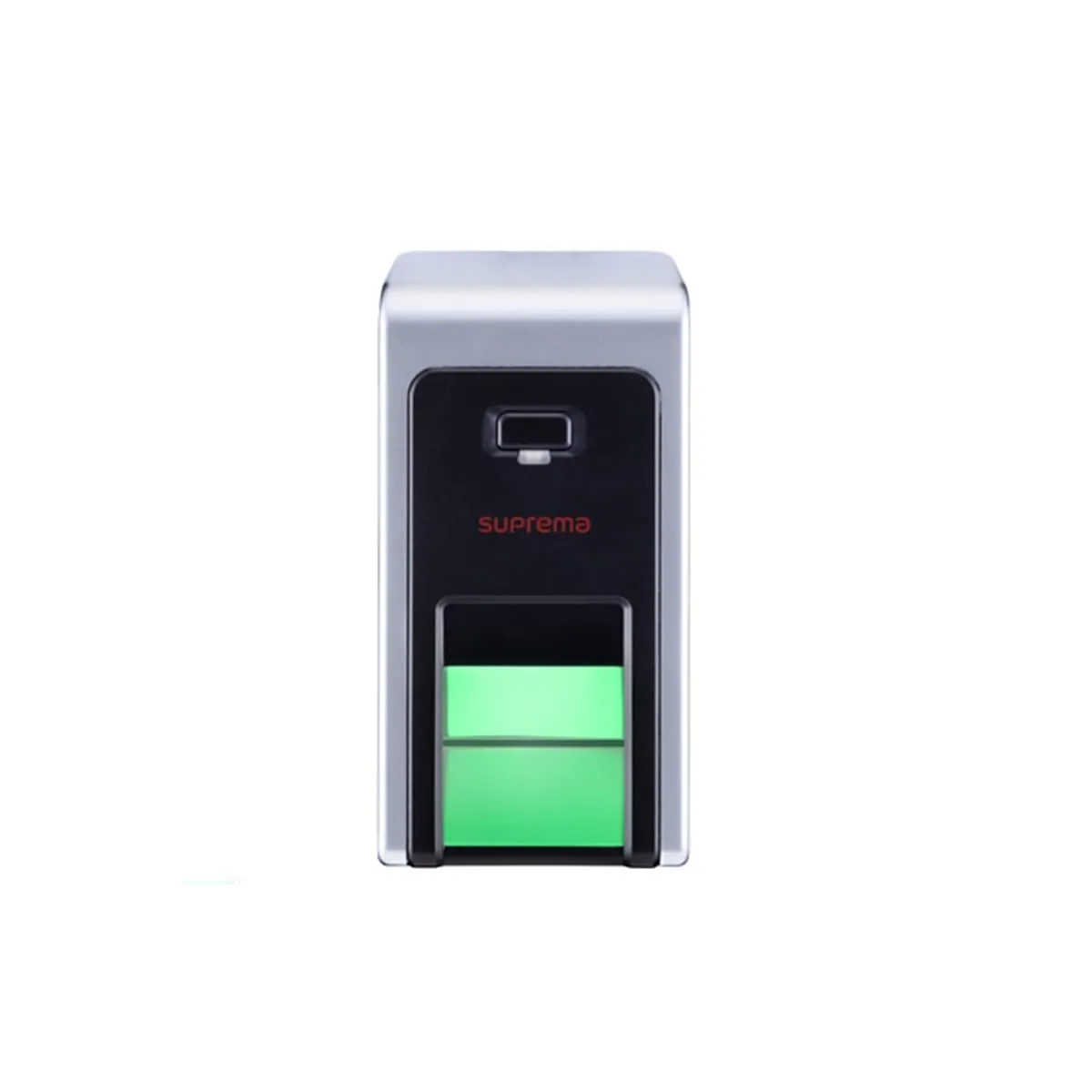

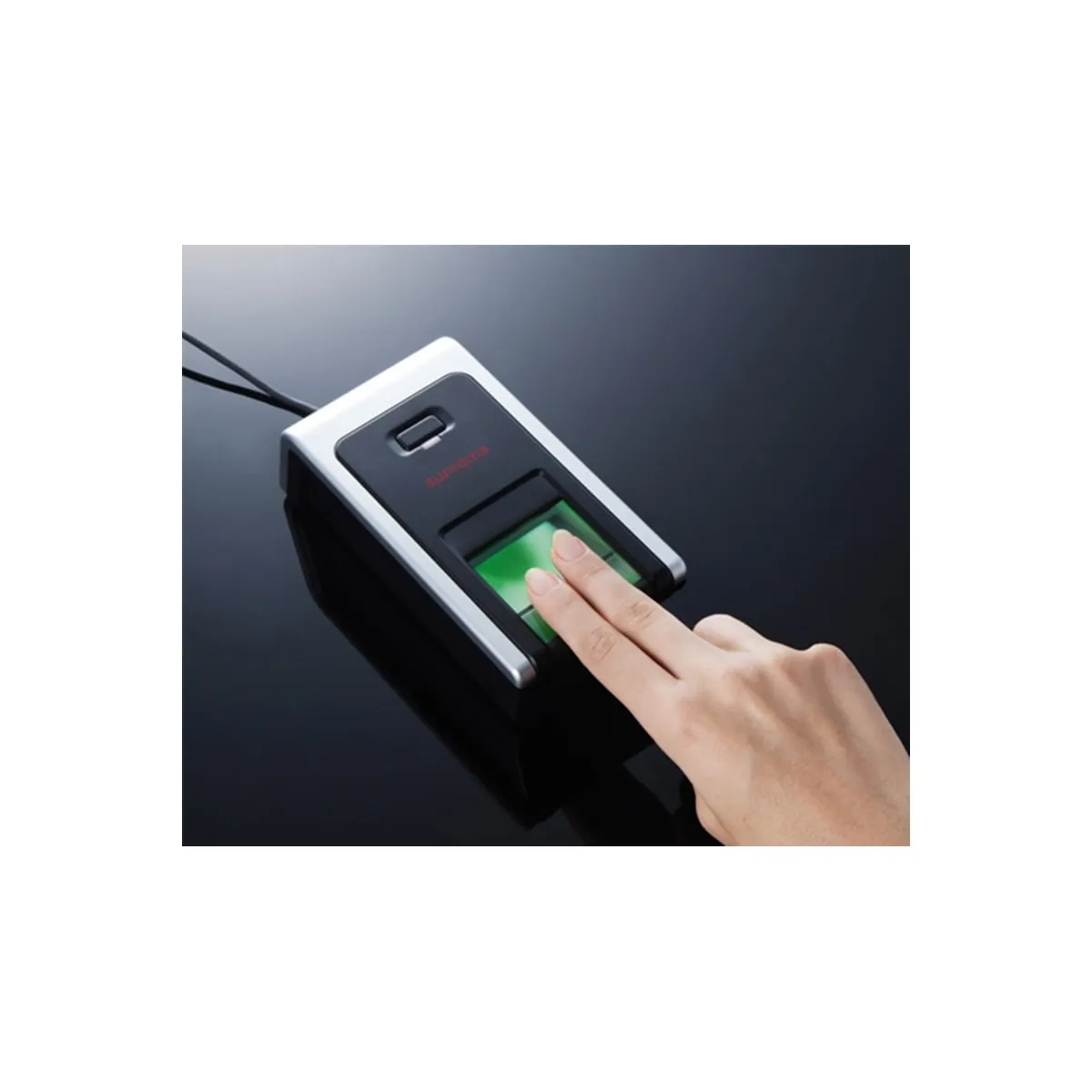

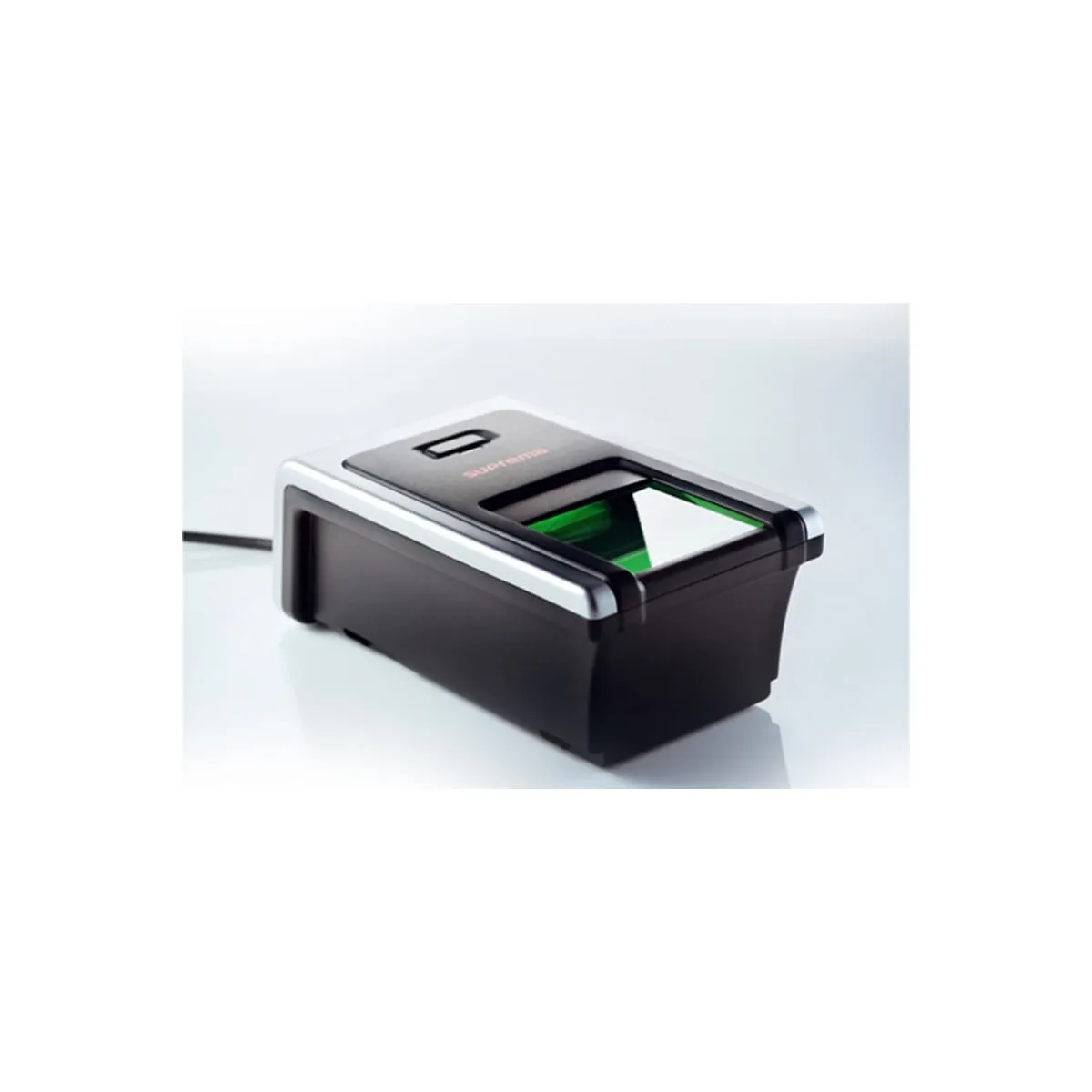

RealScan-D features Advanced
Rolled Image Construction (ARIC) technology using Suprema's unique slip
detection algorithm for constructing rolled fingerprint images. With
ARIC technology, RealScan-D performs over 20 fps frame rate in roll
capturing which ensures highest image quality and lower error rate in
capturing sequences.
|
|
|
Powerful Internal DSP
|
|
RealScan-D equipped powerful
400MHz CPU which enables high-speed image processing in capturing,
storing, processing and transferring. With the CPU, Suprema's unique
Image Pre-Processing technique results more frame rates in capturing and
& richer pixel throughput hence produces better image quality.
|
|
|
Simple & Easy Operation
|
|
Perfect for mass-level users,
RealScan-D's simple user interface makes live-scanning easier. It guides
user's finger scanning sequence with the prism illumination and sound
indication. A handy operating button is located above the platen, which
is fully programmable depends on user's requirements.
|
|
|
Extra wide platen for easier capturing
|
|
RealScan-D offers the largest
platen size in its class and ensures easier capturing when placing
hands. Its wider platen offers massive 900 x 900 pixels resolution and
provides up to 35% more sensing area than other products in the market
and it prevents possible partial loss of fingerprints. The solid &
scratch-free surfaces makes it durable for many kinds of stains &
damages.
|
|
|
Ergonomic Design
|
|
RealScan-D has been ergonomically
designed to allow obstruction-free use for various kind of fingerprint
capturing. Ideally indented front overhang allows seamless hand moves in
rolled print and two thumbs capturing. In addition, the platen area is
precisely sealed to protect against invasive moisture and dust.
|
|
|
Fast Start-up Time
|
|
As with all other Suprema live
scanners, the RealScan-D features Fast Initialization technique.
Start-up time has been minimized to 0.37 second, ensuring the scanner is
ready virtually with no lag. |
|
